Automatic Carton Cum Label Coding Machine
Description :
Automatic Carton Cum Label Coding Machine is very easy to operate. Machine is used for coding on carton & label and machine is also useful for cosmetics, food packaging and pharmaceutical practices.
|
Silent Features :
|
|
| NB :Only Label Coding & Only Carton Coding machine also available |
 |
Technical Specification : |
Carton Size |
: |
Max. 325 mm x 185 mm.
Min. 100 mm x 50 mm. |
Speed |
: |
125 / 180 Carton per Minute. |
Power |
: |
0.25 HP, 3 Phase, 440 Volts, 50 Hz, AC |
Use of Letters |
: |
Metal Type & Rubber Stereo. |
Dimensions |
: |
865 mm (L) x 762 mm (W) x 610 mm (H) |
Net Weight |
: |
115 Kg Approx) |
|
| Automatic Carton Cum Label Coding Machine |
|
| |
| |
|
Online Induction Cap Sealing Machine (Air & Water Cooled)
Description :
Online Induction Cap Sealing Machine (Air & Water Cooled) is
sturdy and independent machine used for sealing of Aluminum Foil,
PP AND PVC on the neck of bottle.
|
Silent Features : |
|
 |
Technical Specification : |
Operating Speed |
: |
40 to 120 Bottles Per Minute. |
All External Surfaces |
: |
SS 304 meet cGMP Requirements. |
Conveyer Width |
: |
125 mm and working width 85 mm |
Conveyer Belt |
: |
SS304 |
Conveyer Driven |
: |
Ac Drive make Allen Bradley. |
Electric Supply for Induction |
: |
0.25 HP, 220 Volts, Single Phase, 50 Hz. |
Electric Supply for Conveyer |
: |
0.25 HP, 220 Volts, Single Phase, 50 Hz. |
Electric Load |
: |
0.5 HP, Single Phase, 220 Volts, 50 Hz, AC. |
Overall Dimension |
: |
5 ft x 3 ft x 5.5 ft. (L x W x H). |
Net Weight |
: |
95 Kg. |
|
Online Induction Cap Sealing
Machine (Air & Water Cooled) |
|
| |
| |
|

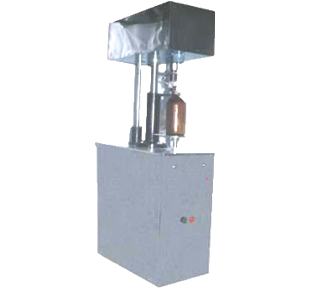

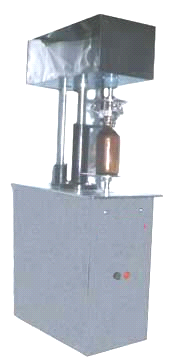

Semi Automatic Cap Sealing Machine
Description :
Semi Automatic Cap Sealing Machine is a very sturdy Single Head Screw / Press Cap Sealing Machine. It is covered with very elegant look S.S.304 Material, It is a cGMP Model, The Screw / Press Cap should be placed manually, then place the bottle under sealing head one by one. When the cam operated Jar plate goes up, with the help of pressures on sealing head.
|
Silent Features : |
|
 |
Technical Specification : |
Model |
: |
NACS - 30 |
Speed |
: |
15 to 20 Bottles Per Minute |
Electric Load |
: |
1 HP, 3 Phase, 440 Volts, AC, 50 Hz. |
Machine Dimension |
: |
800 mm (L) x 800 mm (W) x 1500 mm (H) |
|
| Semi Automatic Cap Sealing Machine |
|
| |
| |
|

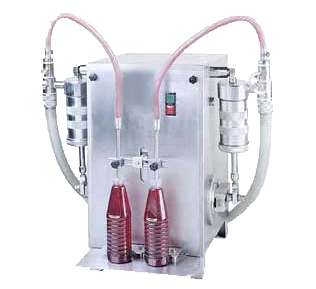

Semi-Automatic Double Head Liquid Filling Machine
Description :
Semi-Automatic Double Head Liquid Filling Machine is very simple. It gives very accurate volume with remarkable speed. It is widely used in Pharmaceutical, Chemical, Paint, Cosmetic and Oil in bottle / container.
|
Silent Features : |
|
 |
Technical Specification : |
| |
|
Single Head |
Double Head |
Filling Range |
: |
30 ml to 1000ml |
30 ml to 1000ml |
Speed |
: |
3 to 7 Bottles Per Minute |
6 to 15 Bottles Per Minute |
Filling Pump |
: |
Volumetric |
Fill Accuracy |
: |
+ 2% on single dose. |
ON/OFF |
: |
DOL STARTER MAKE CUTTLER HAMMER |
Electric Load |
: |
0.5 HP, Single Phase, 220 Volts, AC, 50 Hz. |
Dimension |
: |
460 mm x 460 mm x 750 mm (W x L x H) |
Net Weight |
: |
105 Kg. Approx. |
|
| Semi-Automatic Double Head Liquid Filling Machine |
|
| |
| |
|

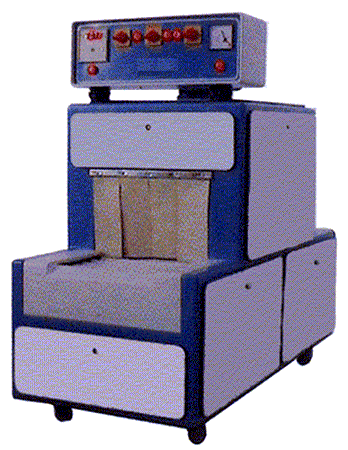

Semi Automatic Shrink Wrap Machine
Description :
Semi Automatic Shrink Wrap Machine is used widely for wrapping packaging materials like PVC, LD, HDPE shrinkable films. Designed specially to shrink films of PVC, LD, HDPE, our shrink wrapping machines can adjust the size of wrapping and offer any kind of wrapping solution.
|
Silent Features : |
|
 |
Technical Specification : |
Working Size Available |
: |
6”x 6”, 8”x 8”, 12” x 12”, 16”x16”, 18” x 18”, 18” x 24”, 24”x24”(Inch)and as per product size |
Length of Tunnel |
: |
3’ , 4’ , 6’ (Feet) |
Speed of Conveyor |
: |
Fix / Variable |
Temperature |
: |
70˚ to 200˚ C. |
Shrink Material |
|
PVC / LDPE |
Power Load |
|
1.5 HP, Single Phase, 220 Volts, 50 Hz, AC. |
Net Weight |
|
135 Kg.Approx |
|
| Semi Automatic Shrink Wrap Machine |
|
|
|
| |
|
|
cGMP Model.
